Lithium iron phosphate (LiFePO4) batteries LiFe 100 - 12
- Product Numbers：201471483319
- Price：Get Latest Price
- Product description：Series Lithium LiFePO4 Category Lithium Type LiFe 100 - 12 Voltage 12V Capacity 100Ah Size 110x395x293mm
INTRODUCTION:
Lithium iron phosphate (LiFePO4) batteries LiFe 100 - 12
Battery Pack Specifications
|
Items |
Standard |
Comments |
|
Nominal voltage |
12.8V |
|
|
Typical capacity |
100.8±1.6Ah |
At 0.2C discharge rate |
|
Normal current |
100A |
|
|
Max continuous discharge current |
100A |
|
|
Max Instantaneous discharge current |
250±30A |
20±5ms |
|
Discharge cut-off voltage |
About 10.0V |
|
|
Charge voltage |
14.6±0.2V |
Charge mode: CC/CV，Use a constant current, constant voltage(CC/CV) please use special lithium charger. |
|
Charge current |
≤25.0A |
|
|
Inner resistance |
≤20mΩ |
Between positive and negative polar |
|
peration temperature range |
Charge |
0℃～+45℃ |
|
Discharge |
-20℃～+60℃ |
|
|
When the environment temperature is higher than 45℃，please pay attention to ventilation and heat rejection. |
||
|
Storage temperature range |
0℃～40℃ （Capacity 80%） |
Recommended long-term storage temperature is 15~25℃ |
|
humidity |
5%≤RH≤85% |
|
|
Shell material |
ABS |
|
|
Weight |
13.80±0.20Kg |
|
|
Size（L*W*H） |
（342±1）*（173±1）*（212±1） |
|
|
Protection function |
Over charge protection、Over discharge protection、Over current protection、Temperature protection、Balanced function |
|

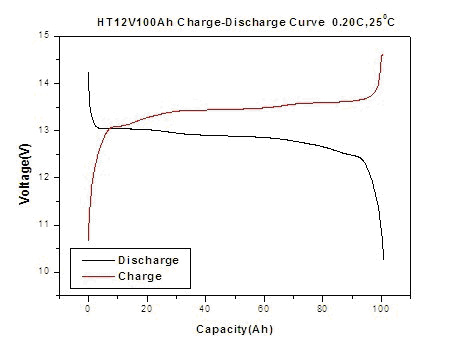

Characteristic curve
