E-bike charger 120W 48V 2Amp Lead-acid Battery Charger

Quick Details

• Part: charger
• Place of Origin: Shandong, China (Mainland)
• Brand Name: Enerise
• Model Number: EPT-4812
• Colour: white or black
• Input Voltage Range: 180-240V
• Input Power: <=120W

Packaging & Delivery

Packaging Details:	40 sets in a carton.
Delivery Detail:	15-20 days after deposit received

Specifications

120W 48V 2Amp Lead-acid Battery Charger for Electric Bicycle is suitable for 48V 10-14AH lead- acid battery
Input Voltage:220

E-bike Charger 48V 2Amp Lead-acid Battery Charger

Brief Introduction

C-MAX is a kind of brand new mini charger which is controlled by intelligent charging method and energy saving system. Mini charger is a perfect combination of compact design and high and new technology owing to the design concept of Apple products and continuous improvement and innovation of our R & D team. Mini intelligent charger is available since 2013.

 Features

1.Compact design

2.Light weight

3.Small volume

4.Three-way charging methods:CC-CV-floating charge

5.High conversion efficiency

6.Various Protection .

reversepolarity protection,overload protection,over current protection ,short-circuit     protection,temperature compensation etc.

7.AC plug and DC connector can be made as per asks

8.Special price level, especially for large quantities needed



 Specification

No.	Item	Unit	Classical Value	Remark
Input characteristics
01	Rated input voltage	V ac	220 (50/60Hz)
02	Input voltage range	V ac	180-240
Output characteristic
03	Output voltage	V dc	48 V
04	Charging current	A	1.8±0.1
05	Ripple	mV	≤250	Input: Rated voltage Output: Full load
06	LED indicator	Red	Power on Charging
		Green	Fully Charged        / Standby
07	Efficiency	%	≥85

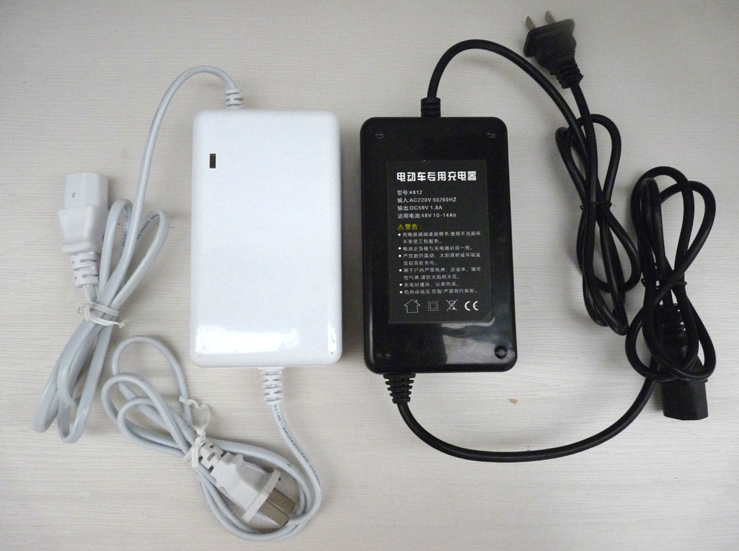

Pictures of 48V 2A 10-14Ah lead-acid battery charger for e-bike
