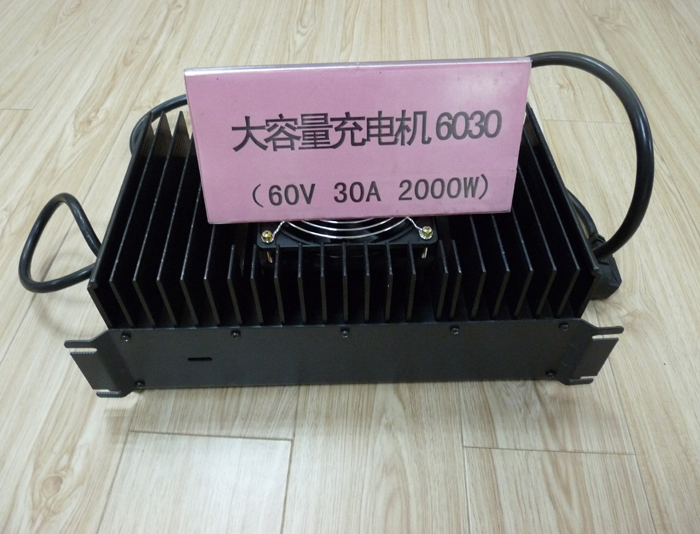

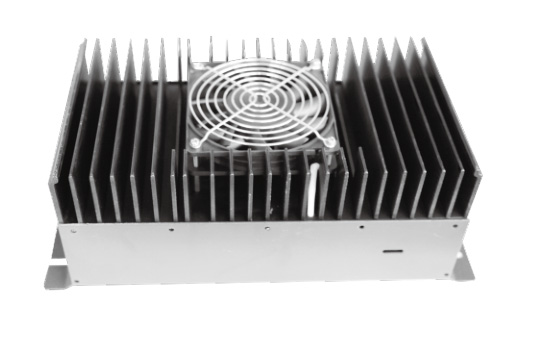

48v60v72v96v high power lithium iron phosphate battery charger charger high current 10A20A30A

INTRODUCTION:

High Power charger, the charger for export products, quality first-class, with and through Europe and the United States all kinds of harsh certification, is a variety of golf carts, cars, high car pile and electric bus ideal charger, the charger charger is embedded on the true meaning of the micro processor and charging program memory and communication unit, can realize the charging state remote monitoring (need to purchase another communication options),

Battery types, in order to give you the best matching battery do so before buying please indicate the type of battery, battery capacity, the parameters such as voltage, I give you the preliminary selection, after I will send an electronic confirmation form, fill in after I handed in the plant engineers and you do that again, no error, engineers will provide you prepare for your best battery charging process, because it is the custom charger so the plant will be shipped within 7 business days.

A) Product overview and application range

The applicability of this series charger battery with lithium iron phosphate lithium manganate lithium battery, etc.. The machine has the advantages of light weight, small size, charge stability, high efficiency, safety and reliability etc.. Sure

Floating charging, automatic switching, and reverse battery, short circuit, output overload protection function.

This series of machine widely used in electric forklifts, golf carts, electric vehicles, electric boat, electric cleaning machine, electric sweeper, UPS uninterruptible power supply, solar

Power generation, wind power generation and power communication railway system cycle charge.

B) Technical indicators

Rated input voltage: AC85V to AC265V

Rated frequency: 45 ~ 65 Hz

Power factor: = 0.98

Full load efficiency: = 93%

Mechanical shock and seismic level: meet the requirements of SAEJ1378

Protection grade: IP46

Operating temperature: -40 ℃ ~ +55 ℃

Storage temperature: -40 ℃ ~ +100 ℃

The charging control: controlled by CAN bus or the enable line control

C) The protection of property

1, overheating protection: when the internal temperature over 75 ℃ charger, charging current is automatically reduced, more than 85 ℃, charger protective shutdown, the temperature drops, automatic recovery charge.

2, short circuit protection: when the charger output happens to be short circuited, automatically turns off the output charger, troubleshooting, delay of 10 seconds to start charging.

3, reverse connection protection: when the reverse battery, charging the opportunity to cut off the connecting internal circuit and battery, not start charging, and there won't be any damage.

4, the input voltage, over voltage protection: when the input voltage is lower than 85V or higher than 265V, charger protective shutdown, automatic recovery after normal working voltage.
