2014 New Practical 250W 64V 2.5Amp Lead-acid Battery Charger for Electric Bicycle,Electric scooter

Quick Details

• Brand Name: enerise
• Model Number: EPT-6420
• Use: Standard Battery
• Type: Electric
• Place of Origin: China (Mainland)
• Colour: white or black
• Input Voltage Range: 180-240V
• Input Power: <=250W

Packaging & Delivery

Packaging Details:	40 sets in a carton.
Delivery Detail:	15-20 days after deposit received

Specifications

250W 64V 2.5Amp Lead-acid Battery Charger for Electric Bicycle suitable for 64V17-20AH lead- acid battery
Input Voltage:220V

2014   New Practical 250W 64V 2.5Amp Lead-acid Battery Charger for  Electric  Bicycle ,Electric scooter



Brief Introduction

C-MAX is a kind of brand new mini charger which is controlled by intelligent charging method and energy saving system. Mini charger is a perfect combination of compact design and high and new technology owing to the design concept of Apple products and continuous improvement and innovation of our R & D team. Mini intelligent charger is available since 2013.

 Features

1.Compact design

2.Light weight

3.Small volume

4.Three-way charging methods:CC-CV-floating charge

5.High conversion efficiency

6.Various Protection .

reversepolarity protection,overload protection,over current protection ,short-circuit     protection,temperature compensation etc.

7.AC plug and DC connector can be made as per asks

8.Special price level, especially for large quantities needed



 Specification

No.	Item	Unit	Classical Value	Remark
Input characteristics
01	Rated input voltage	V ac	220 (50/60Hz)
02	Input voltage range	V ac	180-240
Output characteristic
03	Output voltage	V dc	64V
04	Charging current	A	2.5±0.1
05	Ripple	mV	≤250	Input: Rated voltage Output: Full load
06	LED indicator	Red	Power on Charging
		Green	Fully Charged        / Standby
07	Efficiency	%	≥85

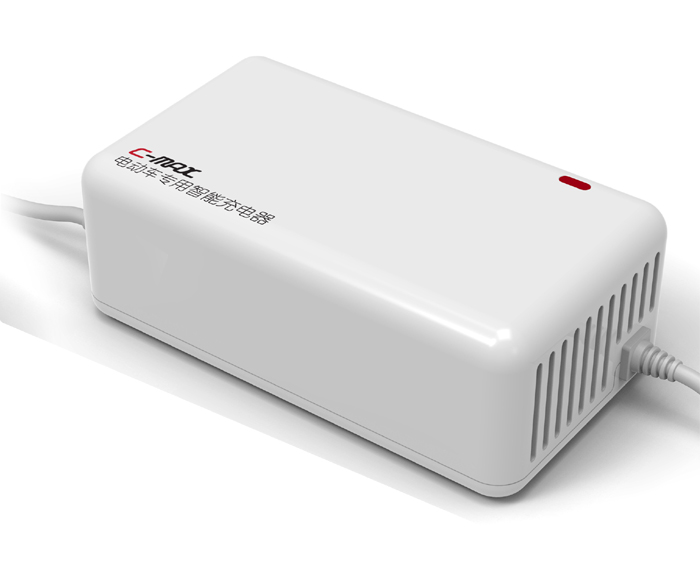

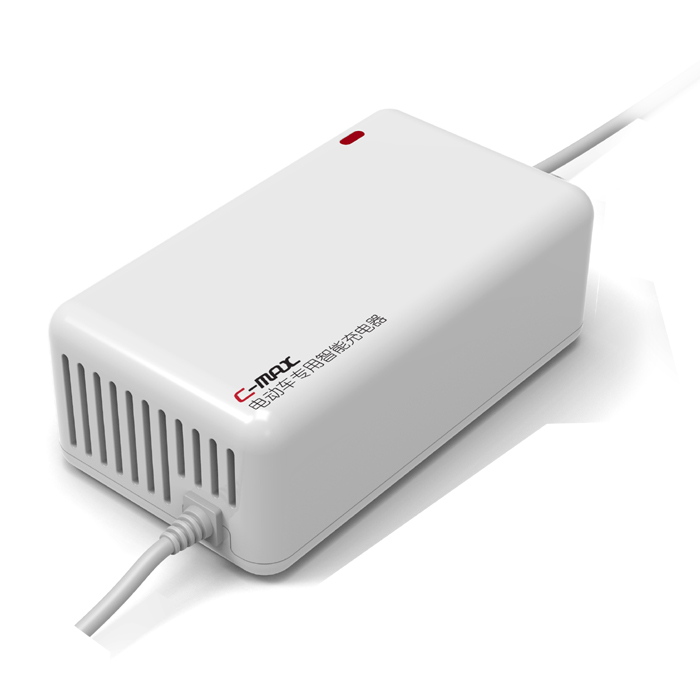

Pictures of 64V 2.5A 17-20Ah lead-acid battery charger for light electric vehicle such as electric-bicycle ,electric -scooter ,etc
