3.3KW Wall mounted AC EV charging station

Product Numbers：A4 220V 16A
Price：USD220
Product description：The specification of product: 1.inputting voltage:single phase 230V 2.The fluctuating range of inputting voltage:single phase 230V±15% 3.

INTRODUCTION:

I. Technical indicator

1. Input power voltage:single-phase 220V

2. Input power voltage range:single-phase 220V±20%

3. Frequency range:50Hz±5Hz

4. Output voltage:single-phase 220V

5. Output voltage range:single-phase 220V±20%

6. Max output current:30A

7. Insulation resistance:>10MΩ

8. The average time between failures(MTBF):>3 year

9. Ip protection level:IP54

10. Net weight:7kgs

11. Material anti-fire feature:UL94－V0

12. Environment temperature:-20～65℃

13. Working humidity:0～95%

14. Corrosion resistance feature:meet GB/T 10125-1997 artificial atmosphere corrosion text and salt fog test.

II. Normal operation of the environmental requirements

1. Working environment temperature: - 20 ℃ ~ + 50 ℃

2. Storage temperature: - 40 ℃ ~ + 55 ℃

3. Relative humidity: 5% ~ 95%

4. The installation of vertical orientation degree: 5% or less

5. Install operating altitude: 2000 meters or less

6. Use place no strong vibration and impact, no strong electromagnetic interference

III. Socket's connecting plug: Standard European standard type 1/2

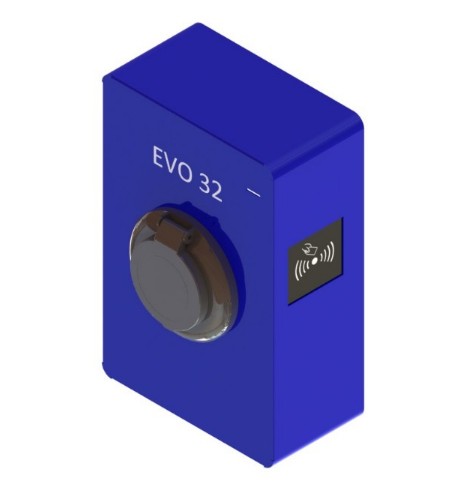

IV. Product appearance size

Product size: 260mm*180mm*115mm(high*length*width)

Remark:the color can be changed according to your requirements.

V. The operation manual

1) Connecting with the socket by electric car’s gun

2) Swipe the card to charge

3) Swipe the card again to stop charging

4) Take out the electric car’s gun

Remark:If you want to charge again,you must unplug the electric car side of plug and plug into electric car again.

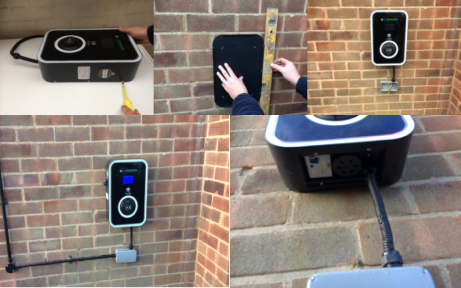

VI.The charging pile’s installation

Remarks:Switch on the type A of RCD first

VII. Product function

1. The perfect protection function,overload protection,short circuit protection function,leakage protection function and so on.

2. Have lightning protection function,can effectively guarantee the security of person.

3. Have warning function,charging pile has led display screen,can real-time display voltage,current fault charging status,such as charging anomalies have display and voice alarm function.

4. Charging plug meets IEC 62196-1/2 connection set for conductive charging system of electric vehicles.

5. Have the auto shut function when the charging is full.
