The li-ion batteries are produced by ourselves and the battery packs use 18650 batteries in series and parallel connections, the working current will be self relocated by inner programs depends on the each battery to improve the overall performance.In the aspect of current distribution, temperature distribution,we make it more equality to improve the working life and the quality.As the low capacity for the single cell, small impact to the pack even less ablity to release.The inner circuit design have the over charge,over discharge,over current,short circiut protection and balance protection to protect to battery in use of all kinds of conditions and finally to extend the service of the battery pack
Mainly used for
Electric ve hicke,e-motor,e-bike,electric tools
PV area,Smart grid and energy storage system ,electricity and
chemical industry,communication base stations,UPS,EPS ,coal
mine safety apparatu,etc.
Moving power bank,PC,electric toys,digital products.

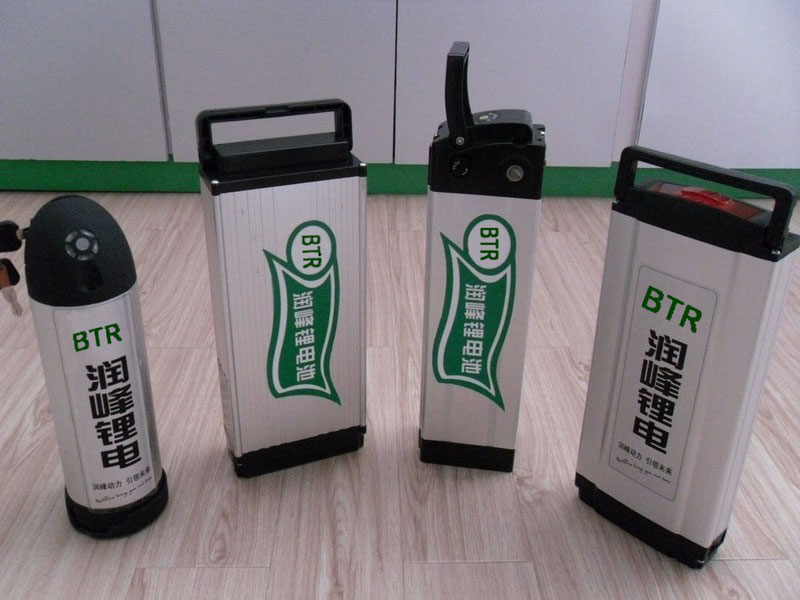

E-bike battery pack
Model
Material
Nominal Voltage
Nominal Capacity
Resistance
Discharge
Cut-off Voltage
Max Continuous discharge
Weight
24F8
LiFePO4
24V
8Ah
≤80mΩ
20 V
16
≤2.8Kg
24F10
LiFePO4
24V
10Ah
≤80mΩ
20 V
20
≤3.5Kg
24F12
LiFePO4
24V
12Ah
≤80mΩ
20 V
24
≤4.2Kg
24 N6
Li（NiCoMn）O2
24V
6Ah
≤80mΩ
19.6V
12
≤1.4Kg
24 N8
Li（NiCoMn）O2
24V
8Ah
≤80mΩ
19.6V
16
≤1.8Kg
24 N10
Li（NiCoMn）O2
24V
10Ah
≤80mΩ
19.6V
20
≤2.2Kg
24 N12
Li（NiCoMn）O2
24V
12Ah
≤80mΩ
19.6V
24
≤2.7Kg
E-motor battery pack
|
Model |
Material |
Nominal Voltage |
Nominal Capacity |
Resistance |
Discharge Cut-off Voltage |
Max Continuous discharge |
Weight |
|
48F20 |
LiFePO4 |
48V |
20Ah |
≤72mΩ |
40 V |
40 |
≤15Kg |
|
48F30 |
LiFePO4 |
48V |
30Ah |
≤65mΩ |
40 V |
60 |
≤20Kg |
|
60F20 |
LiFePO4 |
60V |
20Ah |
≤80mΩ |
50 V |
40 |
≤20Kg |
|
60F40 |
LiFePO4 |
60V |
40Ah |
≤50mΩ |
50V |
80 |
≤30Kg |
|
72F20 |
LiFePO4 |
72V |
20Ah |
≤100mΩ |
60V |
40 |
≤20Kg |
|
72F40 |
LiFePO4 |
72V |
40Ah |
≤60mΩ |
60V |
80 |
≤35Kg |
|
96F20 |
LiFePO4 |
96V |
20Ah |
≤120mΩ |
75V |
40 |
≤25Kg |
|
96F40 |
LiFePO4 |
96V |
40Ah |
≤80mΩ |
75V |
80 |
≤45Kg |
