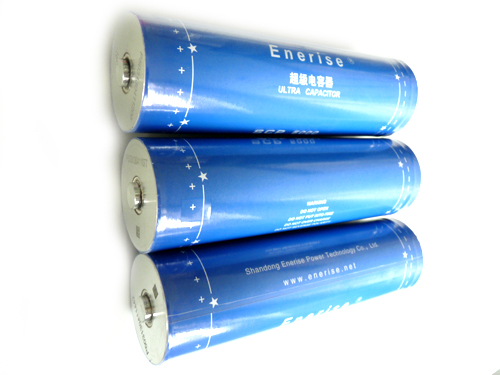

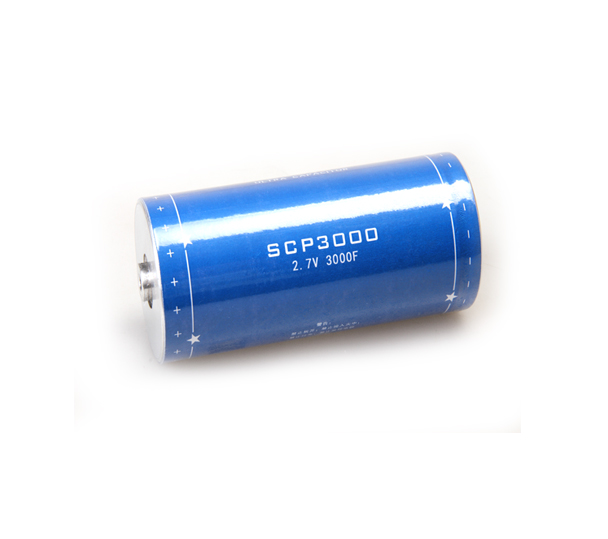

Farad Capacitor 2.7V 650F,1200F,1500F,2000F,3000F Super capacitor/Supercapacitor

INTRODUCTION:

High Power Performance
Low ESR
Over1,000,000 duty cycles
Welded Terminal



Features:



High Power Performance
Low ESR
Over1,000,000 duty cycles
Welded Terminal



Applications:



Pitching control system if wind turbine generator

EV/HEV

Hybrid Dire Trains

UPS/DVC

Heavy  Duty Machinry

Startup System



Specifications:





Operating Temp Range	-40°C to +65°C
Storage Temp range	-40°C to +70°C
Rated voltage	2.7Vdc , 2.85Vdc Rated voltage
Capactiance range	3000F
case size	60mm Dia ×140mm length
Weight	0.55Kg
life at Room Temperature	10 years at rated voltage and 25°C
life Test	1000hours at rated voltage and +65°C
cycle Test	> 1 000 000 cycles  (rated to half rated voltage at  +25°C)
shelf Life	1000hours without voltage at +70°C





Threaded Terminal Electric Double Layer Super Capacitor 2.7V 650F,1000F,1200F,1500F,2000F,3000F Product Specifications:



Items	Workering Voltage(V)	Nominal Capacitance(F)	Case Size (ΦD×Hmm)	Capacitance Tolerance
Threaded Terminal Super Capacitor	2.7V	650F	51×60mm	±20%
Threaded Terminal Super Capacitor	2.7V	1200F	74×60mm	±20%
Threaded Terminal Super Capacitor	2.7V	1500F	85×60mm	±20%
Threaded Terminal Super Capacitor	2.7V	2000F	102×60mm	±20%
Threaded Terminal Super Capacitor	2.7V	3000F	137×60mm	±20%
